CMACEWHEEL RX20 MINI Folding Electric Bike – 250W Rated / 750W Peak Motor, 48V 15Ah Battery, 40 km Range, 20" Fat Tire
CMACEWHEEL RX20 MINI Folding Electric Bike – 250W Rated / 750W Peak Motor, 48V 15Ah Battery, 40 km Range, 20" Fat Tire
Impossibile caricare la disponibilità di ritiro

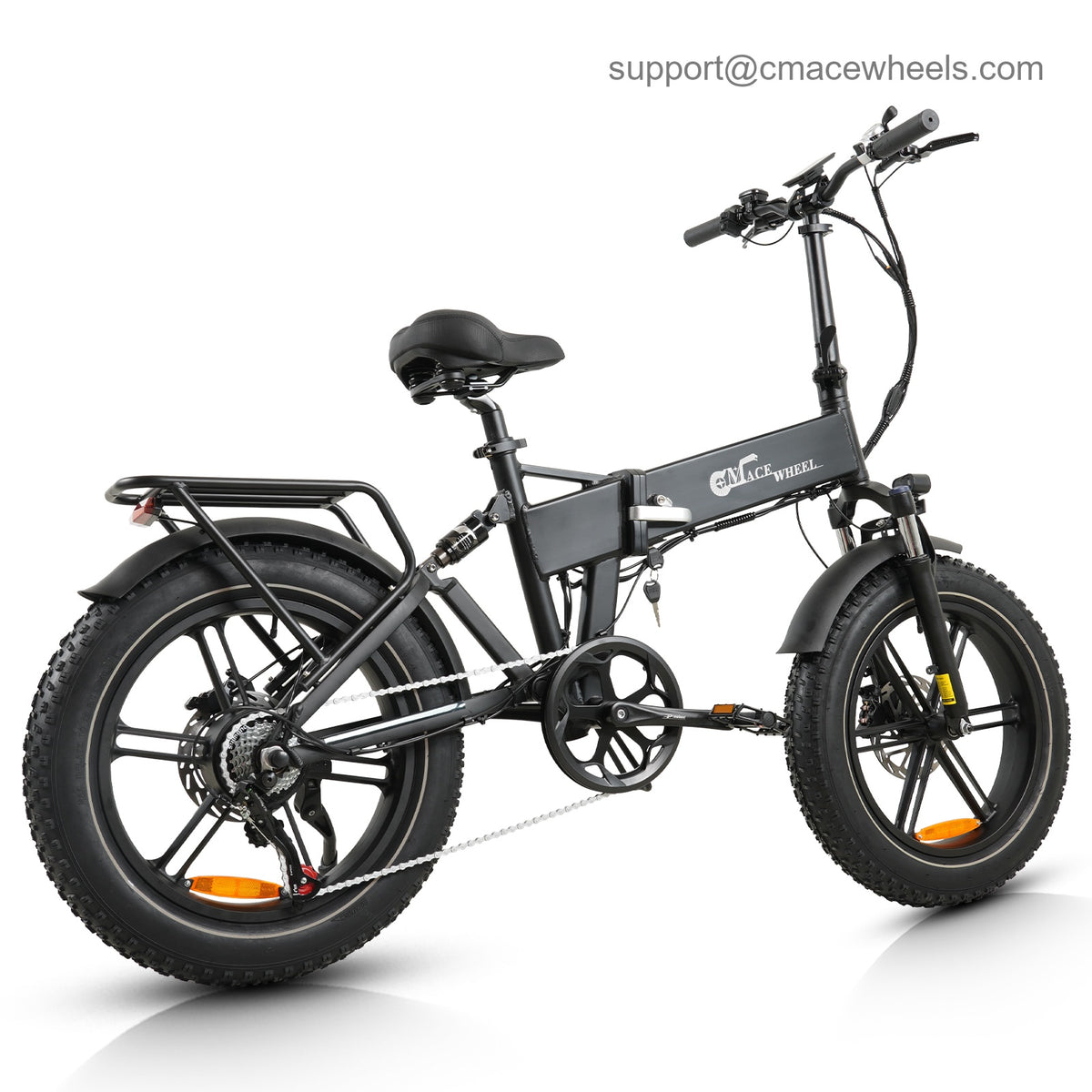

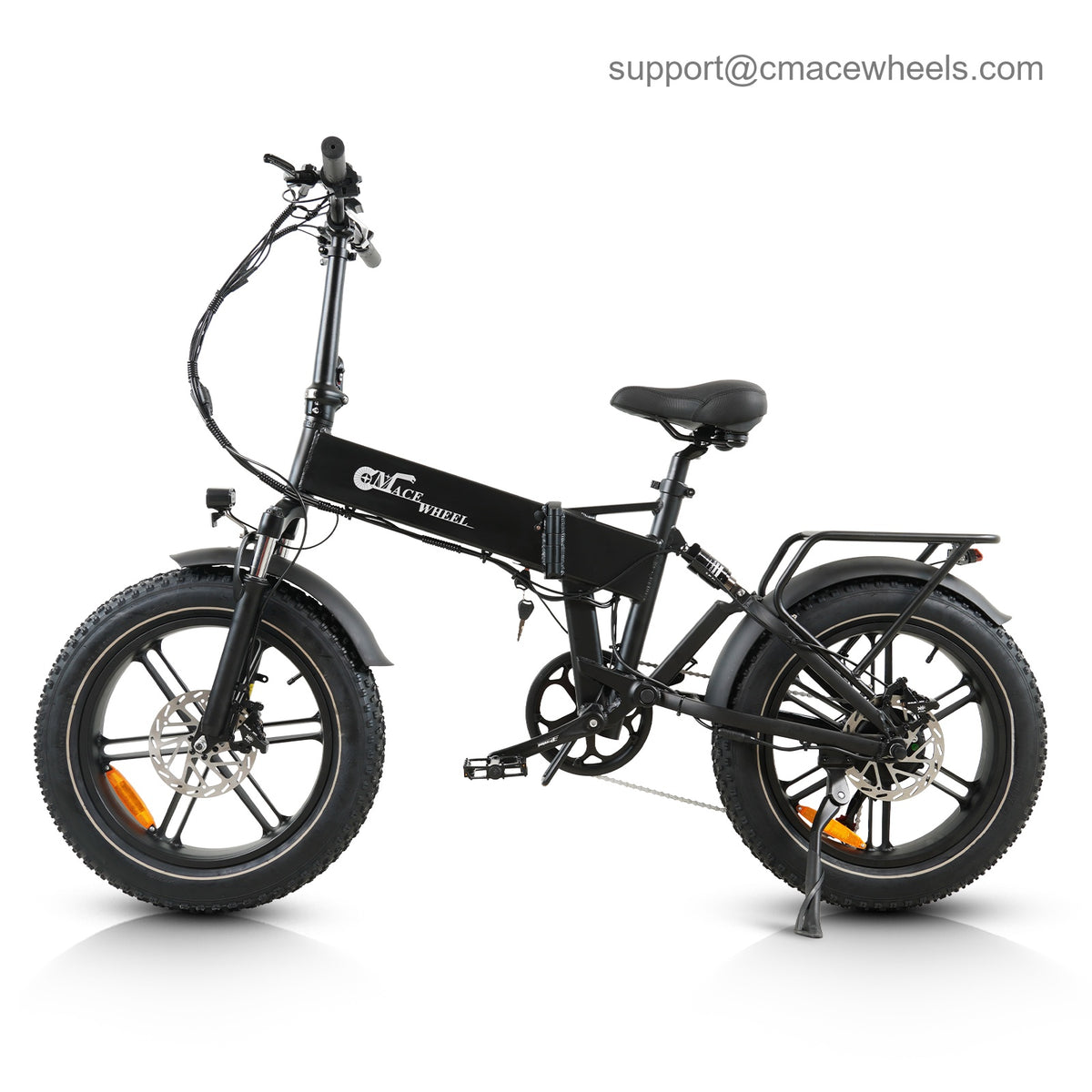

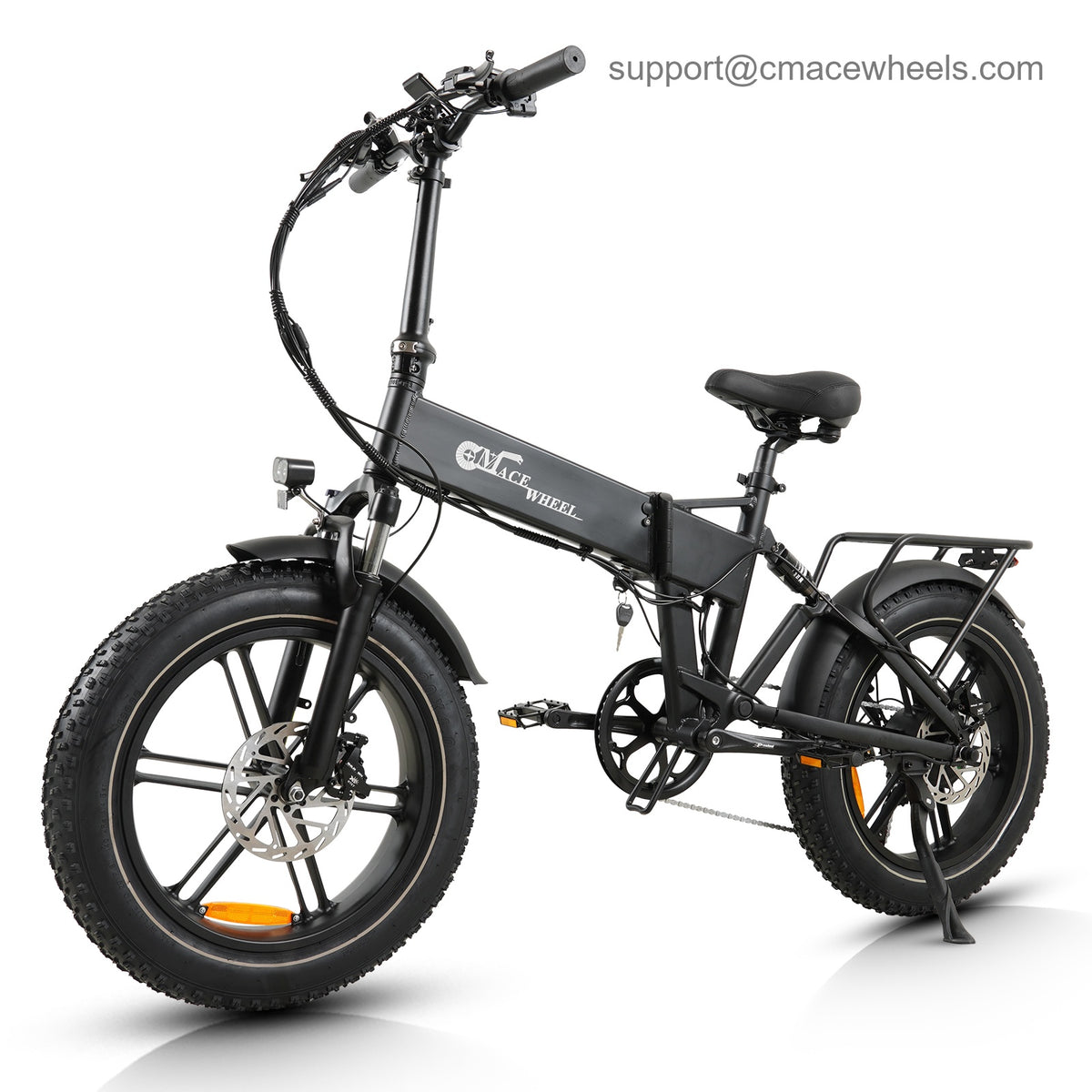

CMACEWHEEL RX20 MINI — Foldable Step-Through Fat-Tire Electric Bike
Meet the CMACEWHEEL RX20 MINI, a compact folding fat-tire electric bike engineered for city commutes, weekend getaways, and smooth trail riding. Powered by an EU-compliant brushless rear motor featuring a 250W rated continuous output and a 750W peak power surge, it pairs with a removable 48V 15Ah (720Wh) battery to deliver up to 40 km (25 mi) of pedal-assist range. In strict compliance with European road laws (EN 15194 / EPAC), the top speed is factory-limited to 25 km/h (15.5 mph) in pedal-assist mode with the twist throttle disabled. For riders located outside the European Union, the twist throttle can be activated and the top speed unlocked up to 42 km/h (26 mph). Built on a low step-through folding frame with 20"×4.0" all-terrain fat tires, full hydraulic suspension, and responsive hydraulic disc brakes, every ride feels safe, comfortable, and controlled.
🔋 Long-Lasting, Removable Battery

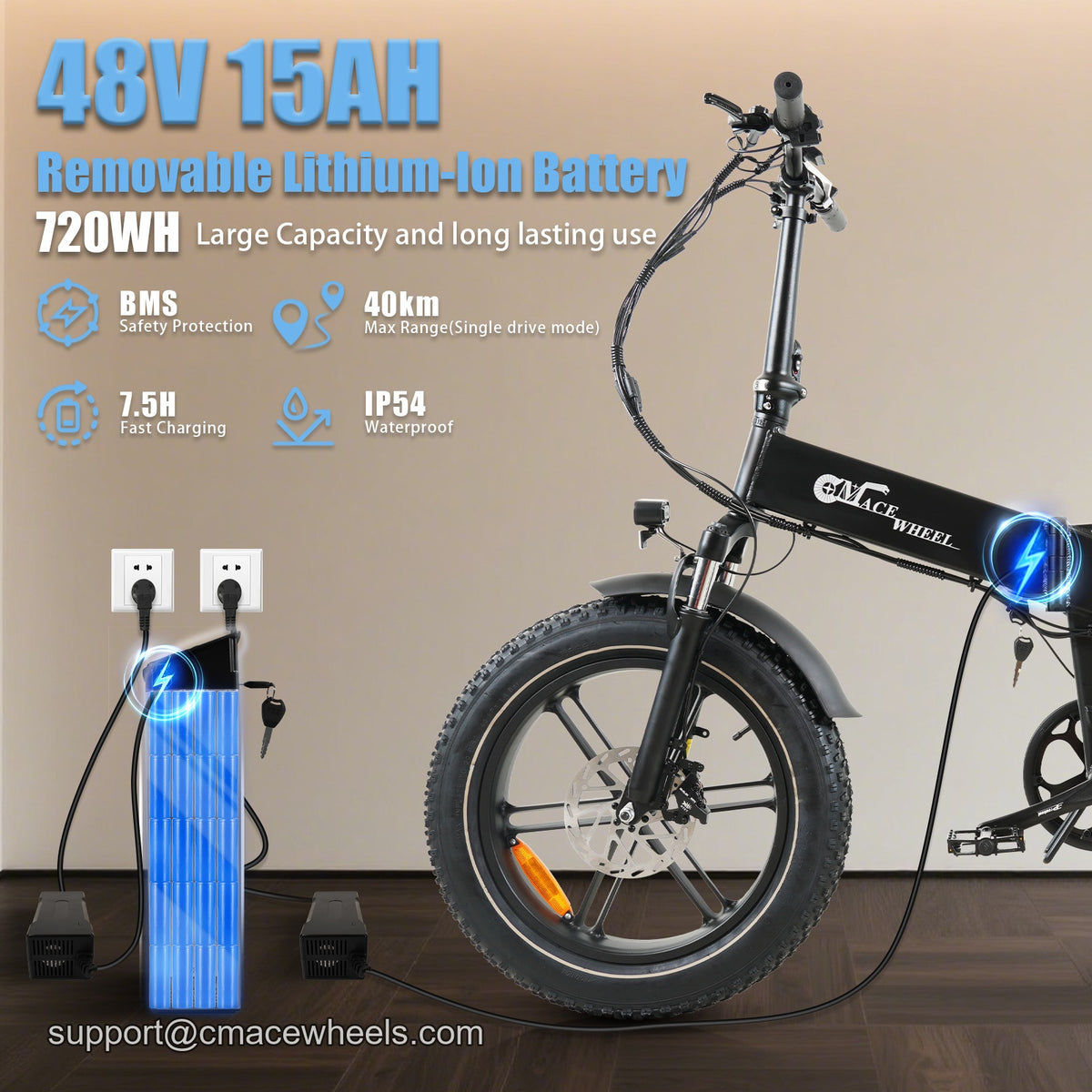

- 48V 15Ah lithium battery · 720Wh · up to 40 km (25 mi) per charge (pedal assist) / 25–35 km pure electric (outside EU with throttle activated)
- Lockable, fast-detachable pack — charge indoors safely or directly on the bike; full charge in ≈ 7.5 hours
- Smart BMS safety protection + over-current protection + built-in anti-theft battery lock
🚀 250W Rated / 750W Peak Power & Legal Compliance

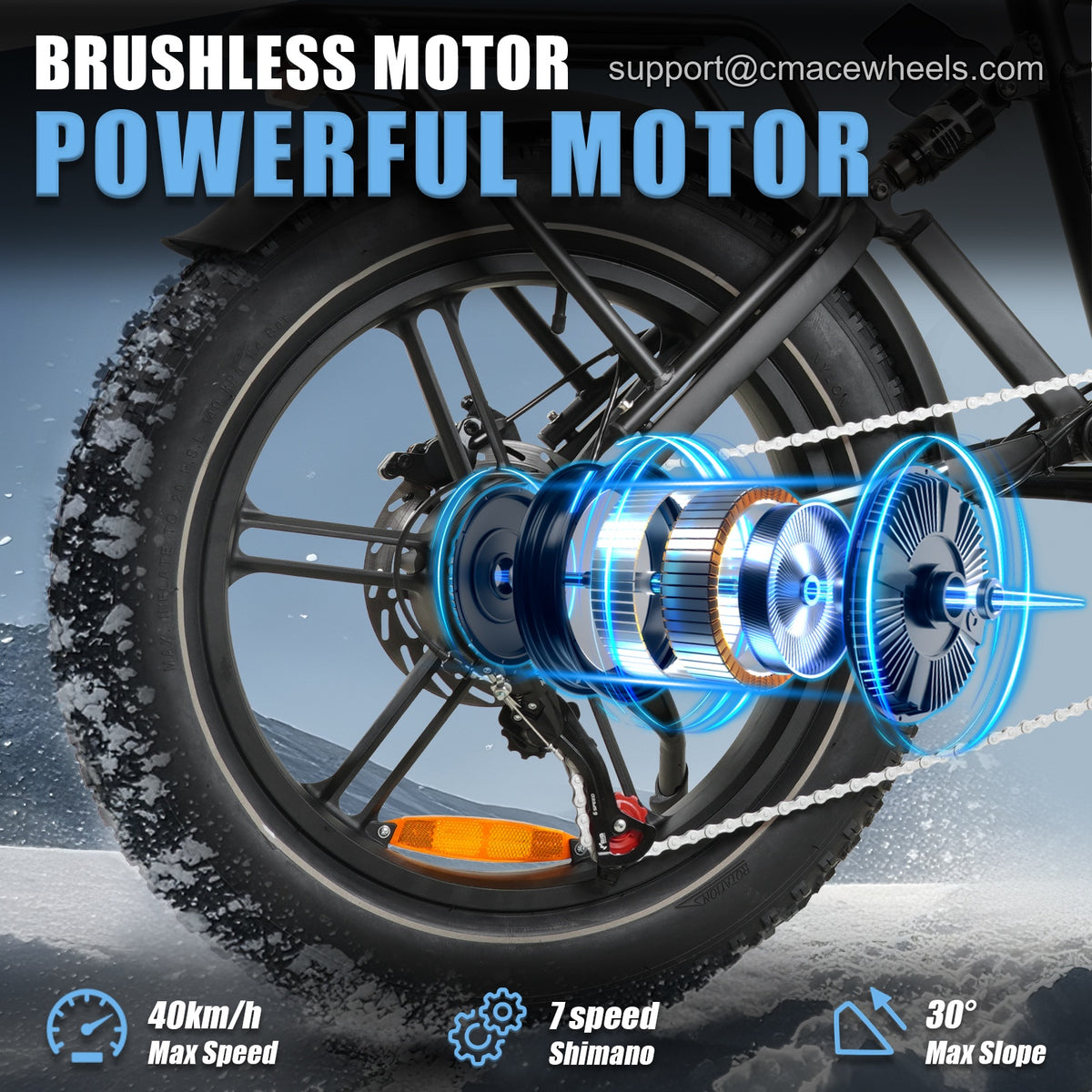

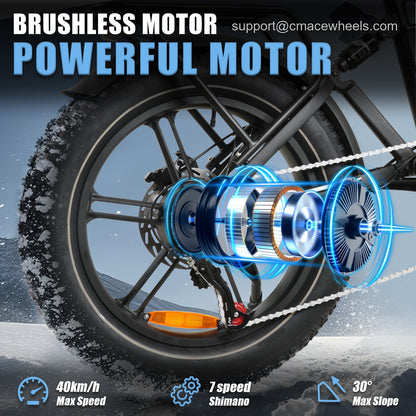

- 250W Continuous Rated / 750W Peak Motor: Fully complies with EU road regulations with a 250W continuous rated output, while providing up to 750W peak power surge for confident climbs (up to 30°) and swift acceleration
- EU-Compliant Speed & Throttle Configuration: Factory-capped at 25 km/h (15.5 mph) in pedal-assist mode with the twist throttle disabled to strictly satisfy European street-legal requirements
- Outside-EU Unlock & Throttle Activation: For use strictly outside the European Union, the twist throttle function can be enabled and the maximum speed unlocked up to 42 km/h (26 mph)
- 5 pedal-assist levels with intuitive handlebar controls to easily tailor assist to your riding style
🛞 All-Terrain Fat Tires & Full Suspension Comfort

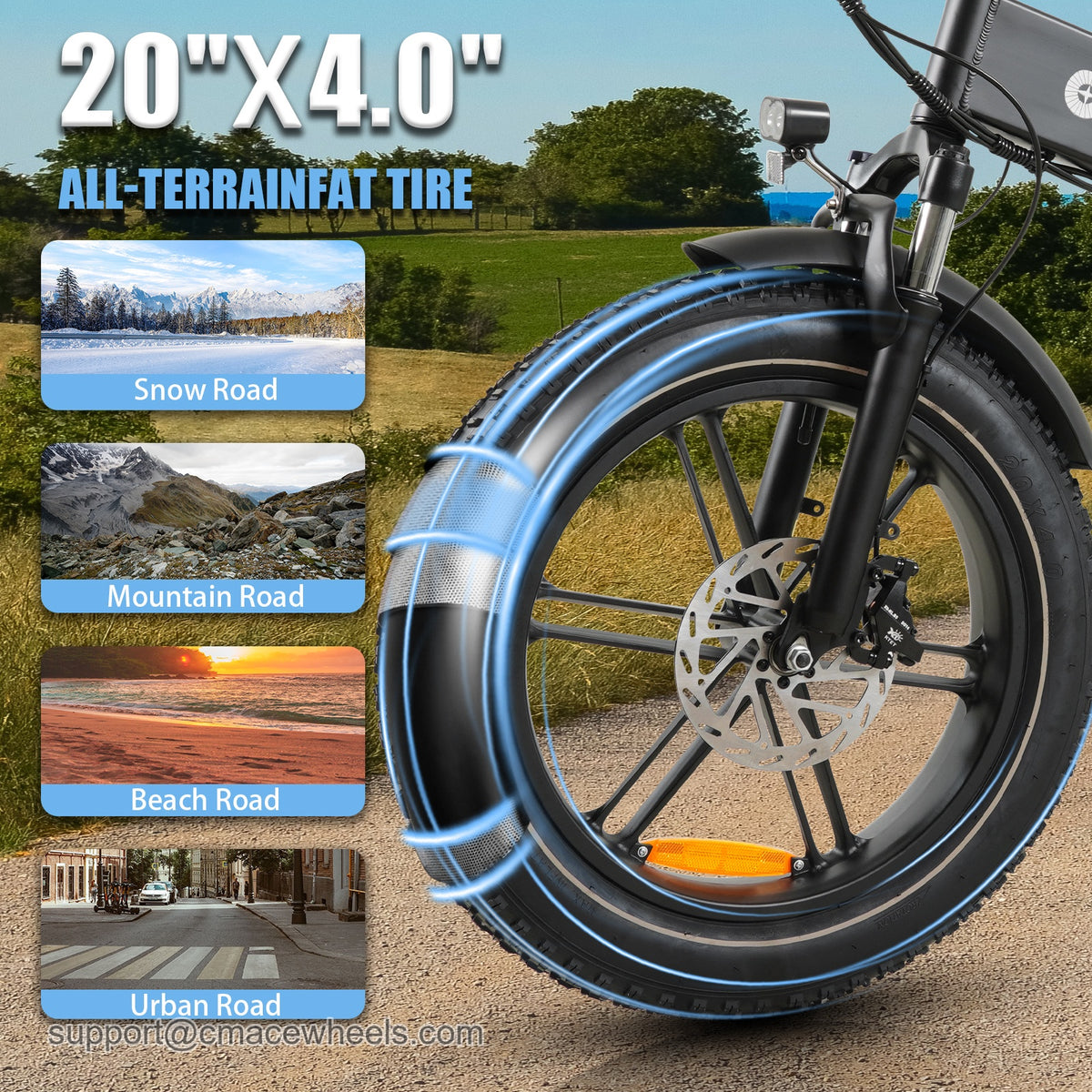

- 20"×4.0" all-terrain fat tires with reflective strips on durable integrated mag wheels — ready for snow, sand, gravel and city streets

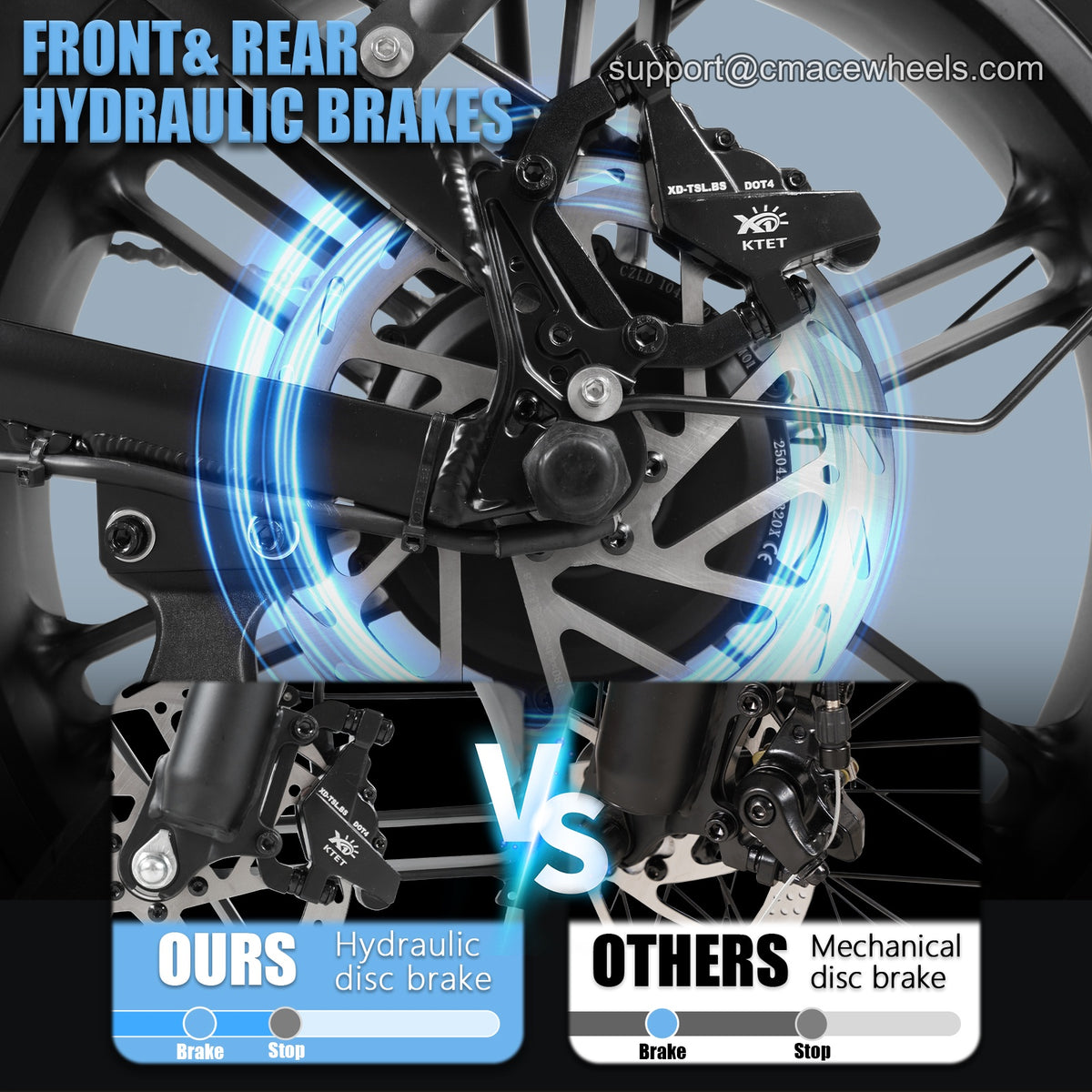

- Front & rear KTET hydraulic disc brakes (DOT4) delivering powerful, confidence-inspiring stopping power

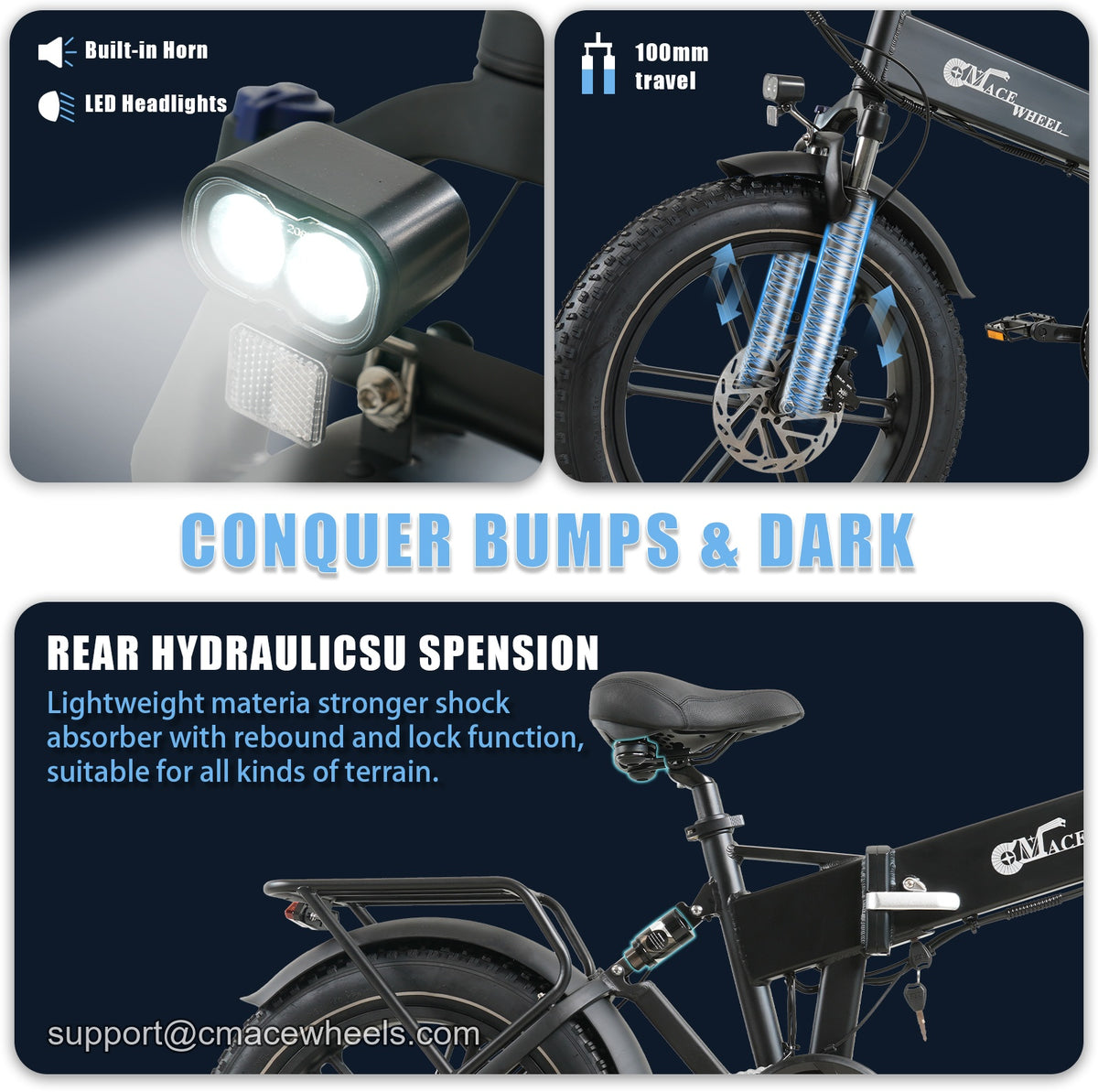

- Full suspension setup: 100 mm-travel hydraulic front fork plus a rear hydraulic shock with rebound and lockout
📟 Smart Display & Integrated Lighting

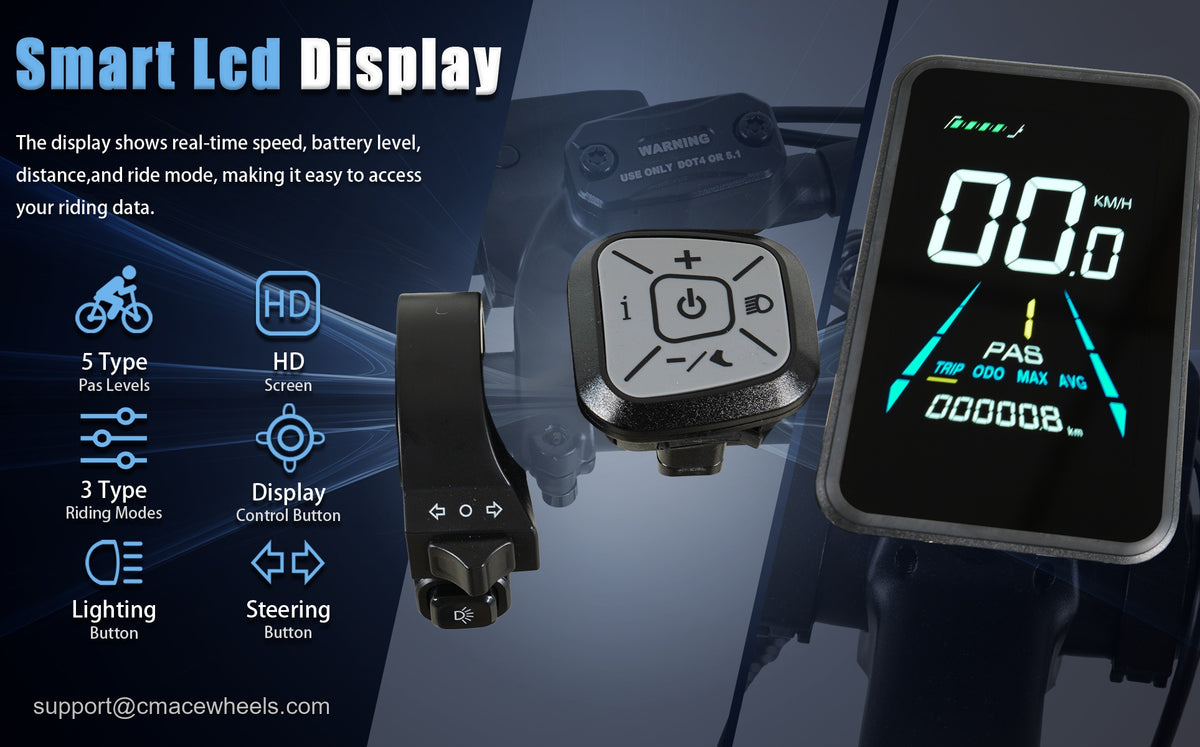

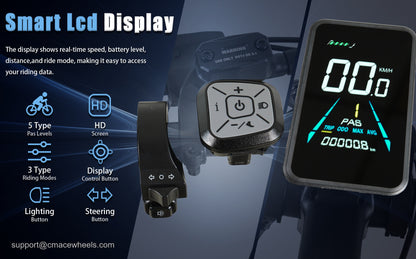

- Yonglin 81F smart LCD display: speed, battery level, trip distance and ride mode at a glance
- LED headlight, taillight with brake light & turn indicators, horn

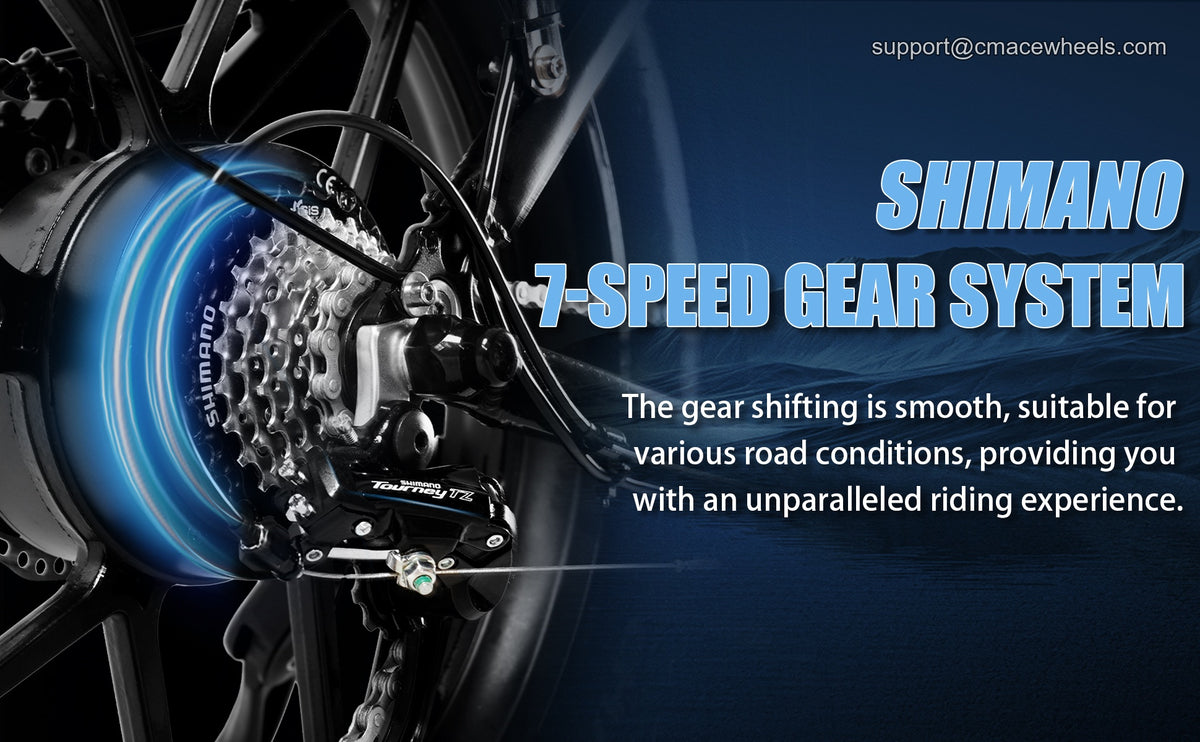

- Shimano 7-speed gearing system for smooth, reliable shifting across varying terrain
🚲 Foldable & Practical Step-Through Design

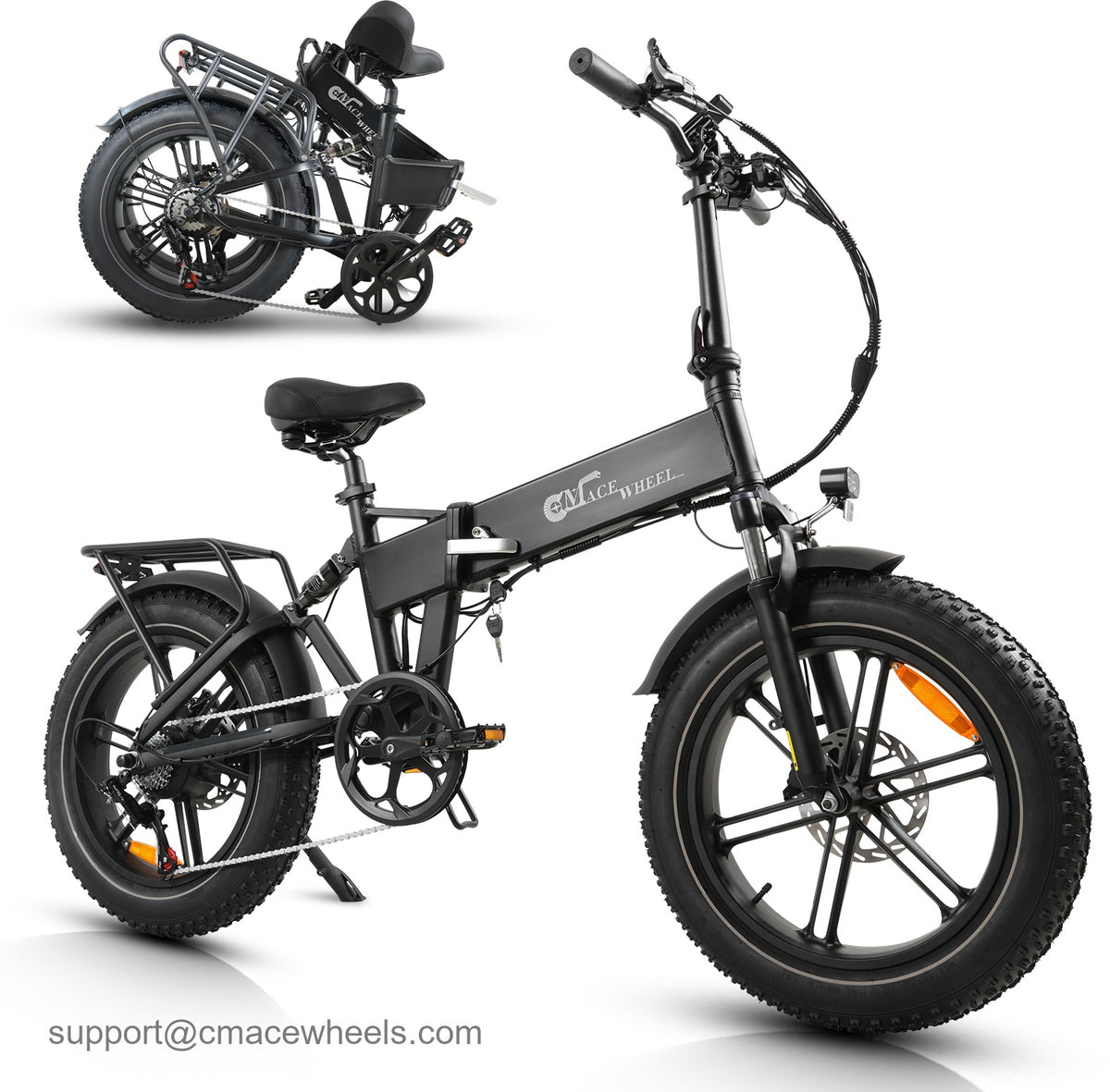

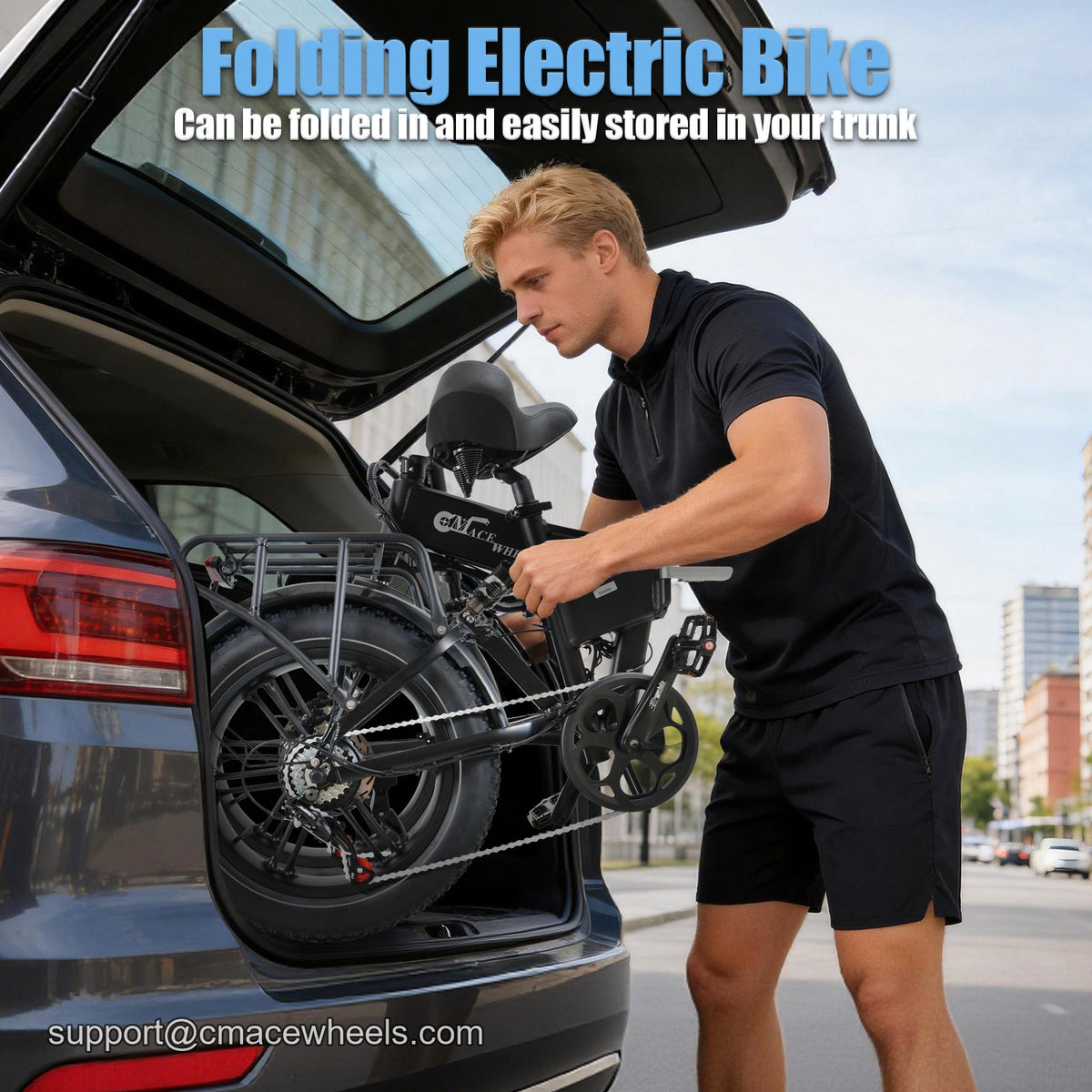

- Quick-folding low step-through aluminum alloy frame — folds in seconds down to 98 × 81 cm for easy storage in car trunks or closets
- Everyday utility ready: heavy-duty rear rack, front and rear fenders, center kickstand, and folding pedals
- Carries up to 150 kg (330 lbs) — comfortably accommodates riders from 157–196 cm (5'2"–6'5")
- IP54 water-resistant rating for everyday riding peace of mind
📐 Specifications
| ⚡ Performance | |
| Motor | Brushless rear motor |
| Rated continuous power | 250W (EU street-legal) |
| Peak output power | 750W |
| Top speed | 25 km/h (15.5 mph) (EU street-legal pedal assist) |
| Throttle function | Disabled in EU; activatable strictly outside the EU only (unlocks speed up to 42 km/h / 26 mph) |
| Max climbing angle | 30° |
| Max range | Up to 40 km (25 mi) pedal assist / 25–35 km pure electric (outside EU) |
| Pedal assist levels | 5 levels |
| 🔋 Battery & Charging | |
| Battery | 48V 15Ah removable lithium-ion |
| Capacity | 720Wh |
| Charging time | ≈ 7.5 hours |
| Protection | Intelligent BMS + over-current + lockable anti-theft |
| 🛞 Wheels & Drivetrain | |
| Tires | 20" × 4.0" all-terrain fat tires with reflective strips |
| Rims | Integrated mag wheels |
| Brakes | Front & rear KTET hydraulic disc brakes (DOT4) |
| Transmission | Shimano 7-speed |
| Suspension | 100 mm hydraulic front suspension fork + rear hydraulic shock (rebound & lock) |
| 📟 Frame & Display | |
| Frame | Folding aluminum step-through frame (matte black) |
| Display | Yonglin 81F smart LCD (speed, battery, distance, ride mode) |
| Lighting | LED headlight, taillight with brake light & turn indicators, horn |
| Water resistance | IP54 |
| 📏 Dimensions & Weight | |
| Overall length / Wheelbase | 173 cm (68.1") / 114.5 cm (45.1") |
| Folded size | 98 × 81 cm (38.6" × 31.9") |
| Handlebar height | 122–134 cm (48.0"–52.8") |
| Saddle height | 89–96 cm (35.0"–37.8") |
| Bike weight | 31.4 kg (69.2 lbs) |
| Max load | 150 kg (330 lbs) |
| Recommended rider height | 157–196 cm (5'2"–6'5") |
Note: Range and speed are measured under ideal pedal-assist conditions; actual performance varies with rider weight, terrain, temperature, and assist level. The 250W continuous rated motor and 25 km/h factory speed limit strictly comply with European road standards (EN 15194 / EPAC). Within the EU, the twist throttle is disabled. Enabling the throttle and unlocking speed up to 42 km/h is exclusively permitted outside the European Union. Please adhere strictly to your local traffic regulations.
🚚 Shipping & Delivery
- Poland Warehouse: Fast delivery within 3–7 business days to EU countries.
- China Warehouse: Direct factory dispatch with door-to-door tracked delivery within 15–45 business days.
- Dispatch: Orders are typically processed and shipped within 24–48 hours on business days.
🛡️ Warranty & After-Sales Support
- 1-Year Warranty: Covers motor, frame, controller, and charger against manufacturer defects.
- 6-Month Warranty: Dedicated coverage for the 48V 15Ah lithium battery.
- Customer Care: Lifetime technical support and replacement parts support for your peace of mind.
📦 What's in the Box?
- 1 × CMACEWHEEL RX20 MINI Folding Electric Bike
- 1 × 48V 15Ah Removable Lithium Battery (with keys)
- 1 × Battery Charger & Power Cable
- 1 × Rear Luggage Rack, Front & Rear Fenders, Center Kickstand
- 1 × Multi-functional Assembly Toolkit & User Manual
❓ Frequently Asked Questions (FAQ)
Q: Is this electric bike street-legal in Europe?
A: Yes! The CMACEWHEEL RX20 MINI is fully configured for European road compliance, featuring an EU-compliant 250W continuous rated motor, a factory speed cap of 25 km/h (15.5 mph) in pedal-assist mode, and a disabled twist throttle.
Q: Can the maximum speed be unlocked and can the throttle be activated?
A: Enabling the twist throttle and unlocking speed up to 42 km/h (26 mph) is strictly permitted and intended ONLY for riders and destinations outside the European Union. Within the EU, the throttle remains disabled and the speed remains capped at 25 km/h to strictly comply with European road regulations.
Q: What is the difference between rated power and peak power?
A: The motor provides a continuous rated output of 250W to meet EU street-legal requirements, while delivering a peak power surge of up to 750W when extra torque is required for steep climbs (up to 30°) and rapid acceleration.
Q: Can the battery be taken indoors to charge?
A: Yes! The battery is key-lockable and completely removable. You can charge it directly on the bike or bring it indoors to charge safely.
Q: Can I ride this electric bike in the rain?
A: The bike has an IP54 water resistance rating, making it safe for light rain and wet road splashes. We recommend avoiding heavy downpours and deep standing water.
Q: Need help before you buy?
A: Our support team is happy to help — just reach out through our store's contact page.
